Using color roles to create consistent design systems

According to Two Hard Things by Martin Fowler, naming things is one of the two hard things in computer science. I think naming colors is no exception.

A default Tailwind configuration gives you access to a wide range of colors, like gray-100, gray-200, gray-300, etc. While these names tell you something about what the color looks like, they don't tell you anything about what the color is used for.

Look at these components for example:

const Button = () => (
  <button className="bg-gray-100 text-gray-900 border-gray-200">
    Click me
  </button>
);

const Typography = () => (
  <p className="text-slate-900">
    Hello, world!
  </p>
);

Both have very similar colors, but they're not the same. You probably want your foreground text to be the same between your components. But in this example, Button uses colors from the gray palette, while Typography uses colors from the slate palette. This is a very simple example, you can imagine how this can get out of hand quickly with hover states, focus states, etc.

Using a color pallette directly like this is makes it hard to maintain a consistent design system. Not only because you easily create inconsistencies between components, but also because you need to decide and remember which color to use when working on components. Let alone refactoring your design system when you want to change a color.

To solve that problem, I've often resorted to using colors like primary, secondary, tertiary, etc. This makes deciding which color to use simpler, but it introduces a new problem. For example, the primary color might mean different things depending on where it's used. A primary background color will be different from a primary text color.

const Button = () => (
  <button className="bg-primary text-primary">
    Invisible text
  </button>
);

Another option is to define colors per component. This is a good approach if you want to have full control. But it can still lead to inconsistencies. In essence, you're maintaining a color palette per component, with the benefit is that you have a clear overview of which colors are used where.

const Button = () => (
  <button className="bg-button text-button border-button hover:bg-button-hover focus:bg-button-focus">
    Click me
  </button>
);

Colors roles are a middleground between using color pallettes directly and defining colors per component. They're a way to group colors together based on their role in your design system. My approach is heavily inspired by Shopify's color roles.

A color role is composed of a collection of tokens that represent different parts of the UI. Each color role follows the same logic for all tokens, but not all tokens are defined for each color role.

Color roles like default will have all tokens defined, because the default color role offers the baseline color for all elements in the Shopify admin. Roles like critical or information will only have a selection of tokens defined, as these roles are usually applied to specific, smaller and more specialized components like badges or banners.

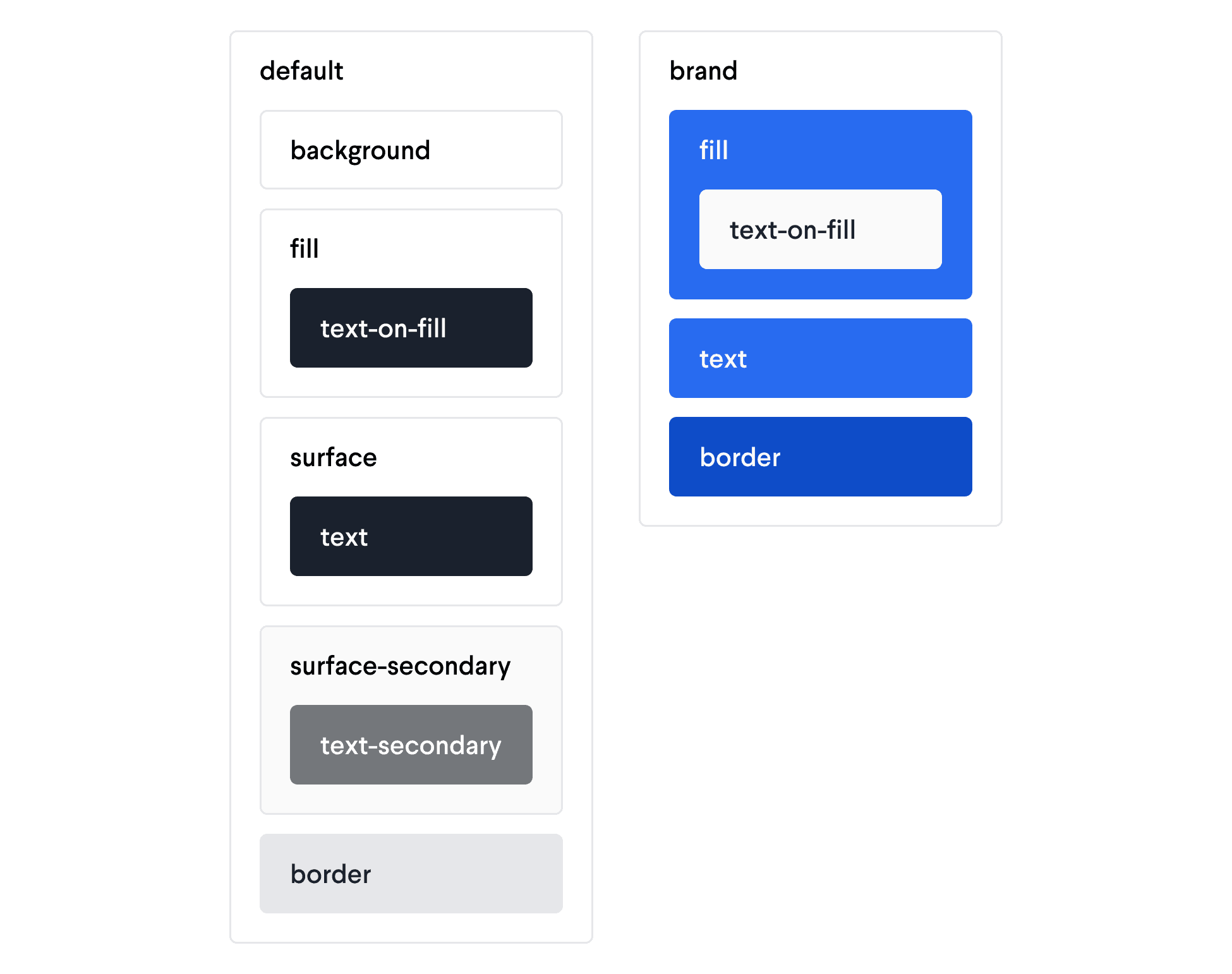

At the time of writing, the following image describes the color roles for the light theme on this website excluding states.

Color roles

I use the default and brand color roles. The default color role is used for most of the UI, while the brand color role is used for elements that need to stand out, like links and some buttons. But you can imagine having more color roles like critical, information, success for things like alerts, badges, and banners.

Within each role, we have relationships between colors. For example, the default color role has a surface, fill, border, and text color. These relationships define on what elements the color should be used.

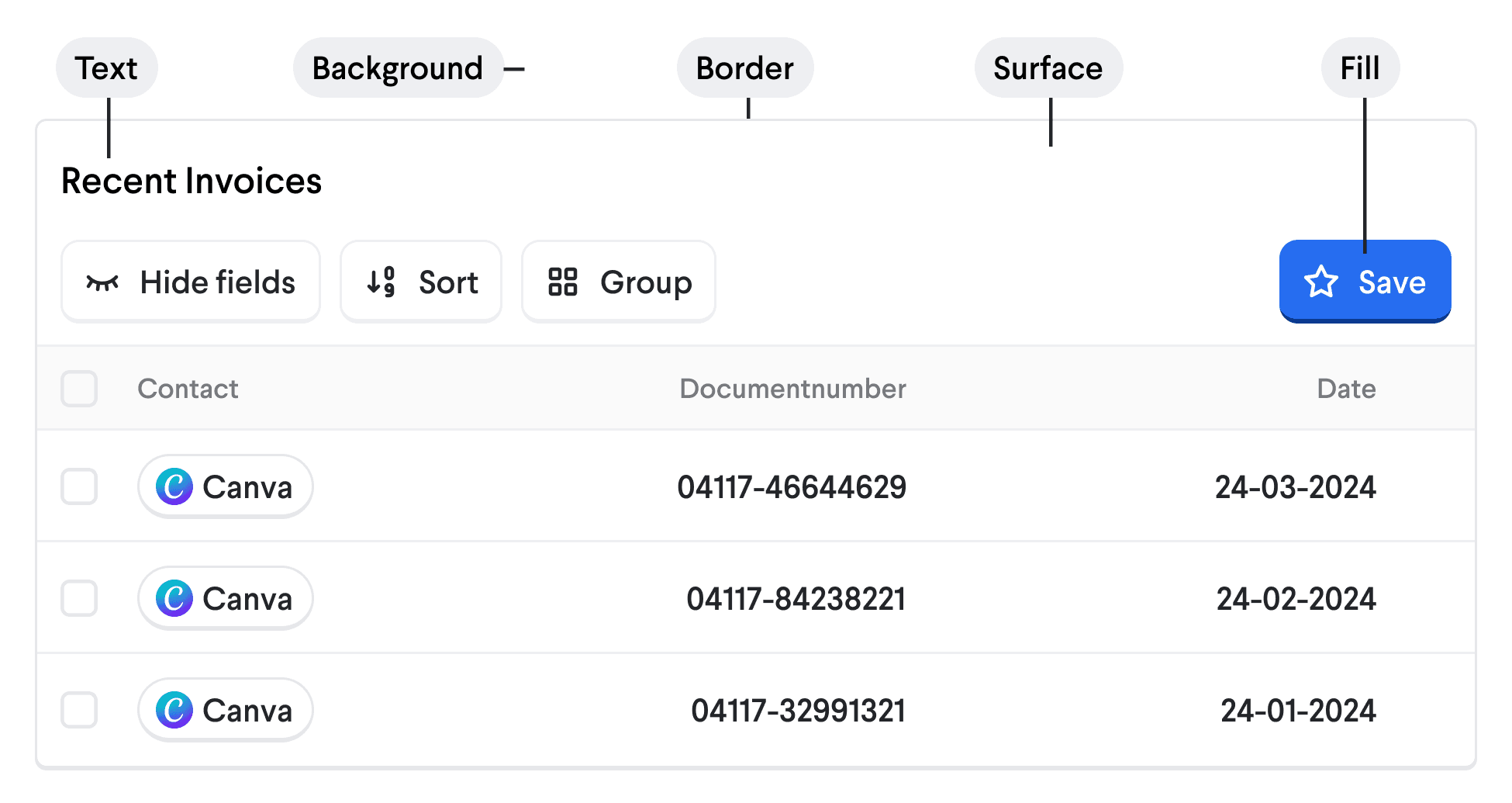

The image below shows how the colors are applied to a more complicated UI within the same design system.

Color roles applied

  • background is the background color for very large surface areas, like the entire page.
  • surface is the background color for elements with the highest level of prominence, like a card or a banner.
  • fill is the background color for elements with small surface areas, like a button or a badge.
  • border is primarily used enhance visual separation between elements.
  • text is the color for text on top of a surface, background or fill.
const Button = () => (
  <button className="bg-fill-brand text-text-brand-onFill border-border-brand">
    Click me
  </button>
);

const Typography = () => (
  <p className="text-text-default">
    Hello, world!
  </p>
);

Let's dissect text-text-brand-onFill. Here the first text- is a Tailwind modifier to apply a text color. The second text- is the relationship between the color and the element, we're applying a text color. The brand is the color role. The onFill is a special state to apply the color on top of a fill color. We could also have used default or secondary here.

When we look at a tailwind configuration, we can see how the color roles are defined.

/** @type {import('tailwindcss').Config} */
module.exports = {
  content: [],
  theme: {
    extend: {
      colors: {
        // The relationship between the color and the element
        text: {
          // The color role
          default: {
            // The color state
            DEFAULT: "var(--text-primary)",
            hover: "var(--text-primary-hover)",
            active: "var(--text-primary-active)",
            onFill: "var(--text-primary-on-fill)",
          },
          // The brand color role
          brand: {
            DEFAULT: "var(--text-brand)",
            hover: "var(--text-brand-hover)",
            active: "var(--text-brand-active)",
            onFill: "var(--text-brand-on-fill)",
          },
        },
      }
    },
  },
}

And these styles can be used in components like this:

<button class="box-border flex flex-shrink-0 items-center font-sans font-medium ring-2 ring-transparent focus:outline-none bg-fill-primary text-text-primary border-border-primary hover:bg-fill-primary-hover hover:border-border-primary-hover active:bg-fill-primary-active focus-visible:ring-border-primary-selected border border-b-2 active:border-b h-10 px-3.5 text-sm rounded-full pl-1 pt-1 pb-1 pr-2" />

If you inspect element this page you will find more examples of color roles in action.

The code for this website is open source, and you can find my color role configuration here.

Thanks for reading! If you have any questions or feedback, feel free to reach out.
